High-Speed USB Audio Interface
High-level audio production comes easy with this fusion of premium components and technology. View larger
Press the AUTO-SENS button, play the connected instruments, and the perfect recording levels are automatically set
High-performance DSP onboard with support for four discrete mixes. View larger
Combining ten inputs, ten outputs, and eight VS Preamps with transparent 24-bit/192 kHz audio quality, the Roland Octa-Capture sets a new standard for portable USB 2.0 audio interfaces. High-level audio production comes easy with this fusion of premium components, Roland-quality engineering, and proprietary preamp and streaming technology. Octa-Capture is not only the perfect interface for multi-channel computer-based production, but also a great solution for expanding the I/O capability of the V-Studio 700 and V-Studio 100. Brimming with quality and performance seldom seen in its price range, Octa-Capture is the next-generation audio interface.
Pro features for perfect multi-mic recordings. View larger
Supports all major DAW platforms on Mac or PC. View larger

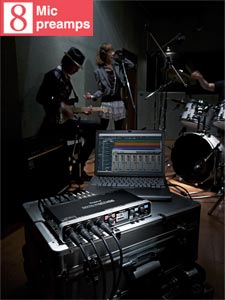

Eight Premium Mic Preamps
With its eight mic preamps, Octa-Capture shows its mettle in multi-mic applications like recording drums or full bands. The input level specs for Channels 7 and 8 have been optimized for extremely dynamic sound sources with high peak levels such as kick drums; the extra headroom (up to +16dBu) available on these channels helps prevent clipping and other recording problems. OCTA-CAPTURE also features independent compressors on its eight analog inputs to control the dynamics of difficult sound sources, ensuring solid recordings with clear sound and consistent levels.

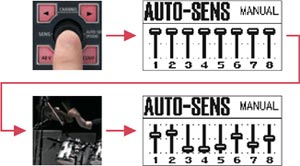

One-Click AUTO-SENS: Automatic Input Level Adjustment
Setting optimum recording levels is an indispensable part of capturing high-quality recordings. If input levels are too high, the sound will distort; if levels are too low, you lose the advantage of the excellent resolution afforded by digital recording, and the sound suffers from signal-to-noise ratio deterioration. To solve these issues, OCTA-CAPTURE is equipped with a newly developed “AUTO-SENS” function, which makes it quick and easy for even novice users to set the optimum level for a particular sound source. With AUTO-SENS, all you have to do is press a button, supply sound input, and the built-in DSP will analyze the sound and set the optimum input level. In addition to Manual mode, where the DSP begins analyzing when you press the button and stops when you press it again, you can also define a preset analysis time of 30 seconds, 1 minute, 3 minutes, or 5 minutes. This revolutionary function is a real time-saver in recording sessions where setup time is limited.
Extreme Low-Latency Driver
Octa-Capture offers incredible stability and industry-leading low-latency USB performance via Roland’s proprietary VS STREAMING technology. All current Mac and PC DAW platforms are supported through ASIO 2.0/WDM (Windows) and Core Audio (Mac) drivers. Thanks to VS STREAMING, you can use multiple devices (two Octa-Capture units or one Octa-Capture plus a V-Studio 100 or V-Studio 700) on the same USB bus without compromising stability, performance, or audio quality.
Four Flexible Monitor Mixes
With OCTA-CAPTURE and its high-performance DSP boasting 40-bit internal processing capability, you can use up to four digital mixers in two different categories (input mixer and output mixer) without tasking your PC. With these “direct mixers,” you’re able to directly output any connected source without routing it through your DAW program, and also tweak your sounds using OCTA-CAPTURE’s built-in digital reverb and compressor. You can provide four independent latency-free mixes for performers, with different source volumes and dry-wet balances to suit the preferences of each musician. Each digital mixer also features a patch bay, which allows you to route your outputs for various applications and save these settings on your PC
Link Two Units for 16 x 16 Audio Input/Output
Need more flexibility? Link two Octa-Capture interfaces for 16 x 16 audio I/O, letting you add more instruments, mix more tracks, and more.
Supports Major Digital Audio Workstations (DAW)
Thanks to ASIO 2.0/WDM support for PC and Core Audio drivers for Mac, the Octa-Capture supports all major DAW platforms, including Cakewalk, ProTools, and more.
What’s in the Box?
Roland Octa-Capture USB Audio Interface, rack mount angle x 2, owner’s manual, Cakewalk Production Plus Pack DVD-ROM, driver CD-ROM, AC adapter, USB cable.
Choose the Roland Audio Interface Right for You
|
OCTA-CAPTURE
High Speed Audio Interface |
QUAD-CAPTURE
USB 2.0 Audio Interface |
|
Eight premium mic preamps, compact
I/O, pristine sound quality |
Pro performance for portable production |
Number of Audio Record / Playback Channels
Sampling Frequency = 96 kHz, 48 kHz, 44.1 kHz |
Record: 10 channels
Playback: 10 channels |
Record: 4 channels
Playback: 4 channels |
Number of Audio Record / Playback Channels
Sampling Frequency = 192 kHz |
Record: 4 channels
Playback: 4 channels |
Record: 2 channels
Playback: 2 channels |
| Nominal Input Level |
Input jack 1-6 (XLR type): -56 to -6 dBu
Input jack 7-8 (XLR type): -50 to +0 dBu
Input jack 1-8 (1/4-inch TRS phone type): -46 to +4 dBu |
Input jack 1, 2 (XLR type): -60 to -6 dBu
Input jack 1, 2 (1/4-inch TRS phone type): -50 to +4 dBu |
| Nominal Output Level |
Output 1-8: +0 dBu (balanced) |
Output 1, 2: +0 dBu (balanced) |
| Headroom |
16 dB |
14 dB |
| Input Impedance |
Input jack 1-6 (XLR type): 5 k ohms (balanced)
Input jack 7-8 (XLR type): 10 k ohms (balanced)
Input jack 1-8 (1/4-inch TRS phone type): 17 k ohms (balanced) |
Input jack 1, 2 (XLR type): 4.8 k ohms
Input jack 1, 2 (1/4-inch TRS phone type): 15 k ohms (balanced) |
| Output Impedance |
Output 1-8: 1.8 k ohms (balanced)
Phones: 47 ohms |
Output 1, 2: 2 k ohms (balanced)
Phones: 47 ohms |
| Residual Noise Level |
Main Out: -87 dBu typ. (Gain: min., Input 1-2 terminated with 600 ohms, IHF-A)
* Internal Direct Monitor Mixing setting
* Stereo Link: On, input channel fader: Unity |
Input 1, 2 to Output 1, 2: -95 dBu typ. (Gain: min., 600 ohms terminated, IHF-A)
* Internal Direct Monitor Mixer setting
* Input channel fader: Unity |
| Dynamic Range |
AD Block: Input 1-8: 104 dB typ. (Gain: min.)
DA Block: Output 1-8: 113 dB typ. |
AS Block: Input 1, 2: 104 dB typ. (Gain: min.)
DA Block: Output 1, 2: 109 dB typ. |
| Display |
128 x 64 dots Graphic LCD (backlit LCD) |
|
| Connectors |
- Input Jacks 1-8 (XLR type / 1/4-inch TRS phone type)
- XLR type (balanced / phantom power +48 V)
- 1/4-inch TRS phone type (balanced)
- Coaxial Input Connector
- Coaxial Output Connector
- Headphones Jack (Stereo 1/4 inch phone type)
- Output Jack 1-8 (1/4 inch TRS phone type (balanced))
- MIDI Connectors (In, Out)
- USB Connector
|
- Input jacks 1, 2 (XLR type / 1/4-inch TRS phone type)
- XLR type (balanced / phantom power: DC 48V, 6mA Max per channel)
- 1/4-inch TRS phone type (balanced) (Input 1 supports high impedance)
- Coaxial Input connector
- Coaxial Output connector
- Headphone jack (Stereo 1/4-inch phone type)
- Output jacks 1, 2 (1/4-inch TRS phone type (balanced))
- MIDI connectors (In, Out)
- USB connector
|
Two combo XLR/TRS inputs with premium mic preamps (VS Preamps), two TRS outputs, coaxial I/O, headphone out, and MIDI I/O.Graphical Control Panel software provides fast, intuitive control of the VS Preamps Phantom power, ground lift, and Hi-Z switches. One-click AUTO-SENS function intelligently sets optimal input levels for the preamps. Extreme low-latency VS Streaming driver. Low-noise, wide-range power supply. Compact with durable aluminum body and Direct Box functionality. Bundled with Cakewalk SONAR X1 LE Eight Premium Mic Preamps premium-grade digitally controlled mic preamps with independent phantom power, low-cut filter, phase invert, and digital compression for each channel. Extreme Low-Latency Driver OCTA-CAPTURE offers incredible stability and industry-leading low-latency USB performance via Roland’s proprietary VS STREAMING technology. You can use multiple devices on the same USB bus without compromising.
